Revit reinforcement generation from Grasshopper

What it does:

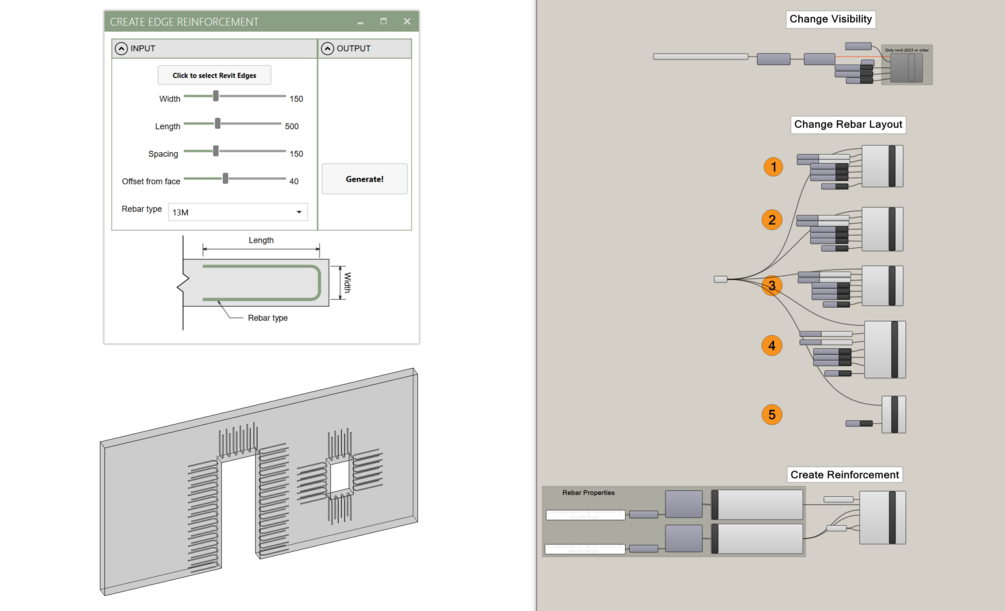

This Grasshopper script generates reinforcement in Revit from Grasshopper.

The script includes C# scripts which generate the reinforcement in Revit, change the visibility of the reinforcement, and change the distribution of the reinforcement.

In addition to the C# components that create and modify the reinforcement, a script that creates U-bars is provided. The script runs through the HumanUI interface which can be run directly as Grasshopper Player, without opening the Grasshopper script.

The plugins needed for the script are:

• Rhino.Inside.Revit
• HumanUI

Possible bug fixes of the script will be available for the current customers without any additional charge.

The script is created for Revit 2024 and Rhino 7. For the users of any older Revit version, during the opening of the script, the path of the libraries should be updated to the corresponding version. If any issues are faced, feel free to contact me at drilonshabani@gmail.com!

Important:

• The file is for private use only and it is strictly forbidden to share online or with other people.
• If the script is used by more users, the appropriate amount should be ordered.
• Any modification due to any possible bug is included in the price and will be sent to the customer.
• Refunds are not possible for any of the digital format products.
